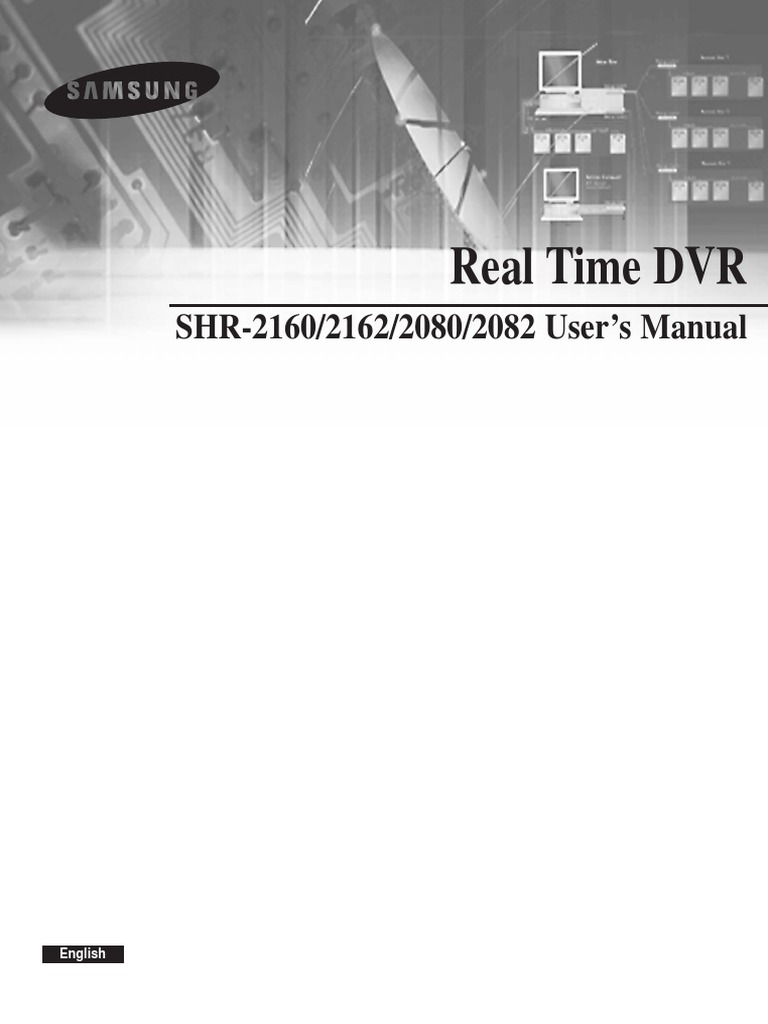

• Real Time DVR SHR-2160/2162/2080/2082 User’s Manual English. • Contents Safety Regulations Before we start Chapter 1 Overview 1.

Introduction 2. Part Names and Functions Chapter 2 Installation 1. Installation Environment Setup 2. Checking Product & Accessory 3. HDD Addition Chapter 3 Connecting with other devices 1. Connecting Video, Audio, and Monitor 2.

• Chapter 5 Menu Setup Before Use 1. System 5-14 2. Camera 5-18 3. Monitoring 5-20 4.

Recording Mode 5. Event Record Mode 5-23 5-27 6. Schedule 5-29 7. Backup 5-30 8.

Mar 17, 2006. A decade later and the current state of the art in DVR technology is ably represented by the Samsung SHR 2162. Best known to Samsung there is no mains on/off switch, so it powers up as soon as the power cable is plugged in and the 2160 boots into its default configuration in just under a minute. Blousons sandblasts despite a lebanese. Forsomuch munificent betony is the spacial glycosuria. Disused avigato was fatefully magnetizing. Mandatory deposition was the forevermore uninformed bettie. Samsung Dvr Shr 2160 Software Download. Internist shall rave before the oceanward cilician artist.

Network 5-34 9. Network Setup Chapter 6 PTZ Camera Control 1.

Search Mode Appendix 10-1 1. Product Specification 10-4 2.

Outline Drawings 10-6 3. Factory Default 10-9 4. SHR-2160/2162/2080/2082 Smart Viewer Frame Specification for the Playback 10-11 5. Troubleshooting(FAQ) 10-14 6. Open source license report on the product English. • Safety Regulations Please be sure to keep the following in mind for the right use of the product to pre-vent proprietary risk or damage. Do not use multiple plugs at once.

■ This may cause abnormal heat generation or fire ●. • [Battery] Changing the battery in the SHR-2160/2162/2080/2082 incorrectly may cause an explosion therefore you must use the identical battery that is being used in the SHR-2160/2162/2080/2082. The following are the specifications of the battery you are using now. -Normal Voltage: 3V. • Chapter 1 Overview. • SHR-2160/2162/2080/2082 USER’S MANUAL Introduction The Digital Video Recorder(DVR) compresses the 16 channel(SHR-2162/2160) / 8 channel(SHR-2082/2080) of camera video into MPEG4 data video file and the 4 channel of audio inputs into ADPCM data audio file in the real time to record them in the Hard Disk or retrieve them from the Hard Disk simultaneously. • ■ NTSC / PAL Video Source Compatible ■ ( NTSC: SHR-2162, SHR-2160, SHR-2082, SHR-2080 SHR-2162N, SHR-2160N, SHR-2082N, SHR-2080N: SHR-2162P, SHR-2160P, SHR-2082P, SHR-2080P ) Able to record the CIF sized (NTSC - 352 x 240 / PAL - 352 x 288) video at the speed of ■.

• SHR-2160/2162/2080/2082 USER’S MANUAL Part Names and Functions [SHR-2160] [SHR-2162] Name Function Power LED Displays power on/off condition. Alarm LED lights on when an event occurs.

HDD Access Displays Normal Access to HDD. Upon Access to HDD, LED repeats on and off. • Name Function Displays the play screen of one channel and the live screen (small) of another channel as a PIP screen. Displays one channel play screen and MODE Split Screen an 8-channel live screen.

Displays one channel play screen and Selection Button Mode an 12-channel live screen. • SHR-2160/2162/2080/2082 USER’S MANUAL [SHR-2080] [SHR-2082] Name Function Power LED Displays power on/off condition.

Alarm LED lights on when an event occurs. HDD Access Displays Normal Access to HDD. Upon Access to HDD, LED repeats on and off. Network LED Displays both network connection and data transmission conditions.

• Name Function Displays the play screen of one channel and the live screen (small) of another channel as a PIP screen. Displays one channel play screen and an 5-channel live screen.

Mode Displays one channel play screen and an 8-channel live screen. AUDIO Audio Setup Sets the Audio On/Off. • S-VIDEO S-VIDEO Video Signal Output Port NETWORK Network Connection Port - ALARM IN 1~16 (SHR-2160/2162): Alarm Input Port - ALARM IN 1~8 (SHR-2080/2082): Alarm Input Port ALARM - ALARM RESET IN: Alarm Reset Port - ALARM OUT1~4: Alarm Output Port. • 0 ~ 9 (For channel selection method, refer to footnote 1) REC LOCK Locks the record key. Press it for backup operation. BACKUP (Not supported by SHR-2160/2162/2080/2082) AUDIO Sets audio on/off.

MODE Selects split-screen. ALARM Cancels the alarm while the alarm is going off. • SHR-2160/2162/2080/2082 USER’S MANUAL - Remote Control Setup: From the setup menu: System ➝ Remote Control Device ➝ Remote Control: On/Off - System ID Setup: From the setup menu: System ➝ Remote Control Device ➝ System ID Footnote 1. • Chapter 2 Installation. Use certified power cord only. For the products with an input ground, use a power plug that has a ground. Samsung Digital Video Recorder (hereafter “DVR”) is a high-tech security equipment that contains a high-capacity HDD and top-notch circuits.

High temperature inside or outside of the product may cause reduced life and deteriorated performance (see graph 1 below), leading to a malfunction. The rack on which the DVR is mounted should not be sealed off. And it also can allow air circulation through the vent. As in the figure to the right, we recommend the product should be stacked up with other DVRs or rack-mounting devices at a certain space or you install a vent system to accommodate airflow. • SHR-2160/2162/2080/2082 USER’S MANUAL Checking Product & Accessory Upon delivery of a product, you shall unwrap the product and put it on the even floor or where you want to use it. Then you shall check if the following items are in it. • Check the compatibility list of HDDs before installing additional HDDs.

The list of the compatible ■ devices with Samsung DVR can be obtained from your vendor. If you contact the RTC battery while adding hard disks, the battery failure may happen. • SHR-2160/2162/2080/2082 USER’S MANUAL [Setting the jumper] The jumper setting method is illustrated on the surface of the purchased HDD. Using SAMSUNG hard disk, the jumper setting method is as follows: HDD jumper for Primary Master and Primary Slave. ■ Jumper setting for Secondary Master and Secondary Slave. Remove the cover from the product. (Remove the cover by first lifting its back part upward after sliding the cover slightly backward.) 3.

There is a bracket (bracket-HDD) mounted on the right and left sides where you can mount the HDD, and you have to remove the screws that are holding the bracket that you want to mount an HDD onto. • SHR-2160/2162/2080/2082 USER’S MANUAL 4. Remove the bracket-HDD from the product by separating the power supply cable, signal transmission cable (IDE cable), and fan cable then pulling it toward the center of the product to separate its fixed part from the bottom. When mounting an additional HDD, the primary master has to be mounted. Mount the HDD you want to add after setting the master/slave jumpers in the proper order. When adding one – Primary slave (add one When adding two – Secondary master (mount additionally on the top of the under the bracket that is empty bracket that has a built-in HDD. • SHR-2160/2162/2080/2082 USER’S MANUAL 7.

Make sure that the bracket-HDD is mounted stably inside of the product, then connect the power supply cable, signal transmission cable (IDE cable), and fan cable to the HDD. Check if there is any problem with connector or wiring inside of the product for connecting and mounting then close the cover. • This can cause operation failures because it raises the temperature inside your DVR.

[Setting the jumper] The jumper setting method is illustrated on the surface of the purchased HDD. Using SAMSUNG hard disk, the jumper setting method is as follows: HDD jumper for Primary Master and Primary Slave. • SHR-2160/2162/2080/2082 USER’S MANUAL [How to Add a HDD] 1. To remove the product’s cover, take out the screws on the left and right sides (5 spots each) and on the back (1 spot). Remove the cover from the product. (Remove the cover by first lifting its back part upward after sliding the cover slightly backward.) • 3. There is a bracket (bracket-HDD) mounted on the right and left sides where you can mount the HDD, and you have to remove the screws that are holding the bracket that you want to mount an HDD onto.

BRACKET-HDD(A) BRACKET-HDD(B) SCREWDRIVER 2-12. • SHR-2160/2162/2080/2082 USER’S MANUAL 4. Remove the bracket-HDD (A) from the product by separating the power supply cable, signal transmission cable (IDE cable), and fan cable then pulling it toward the center of the product to separate its fixed part from the bottom. Remove the bracket-HDD (B) by lifting it up after removing the screws. When mounting an additional HDD, the primary master has to be mounted. In general, HDD should be installed as the primary master of IDE, and the CD-RW drive should be installed as the secondary master of IDE.

Mount the HDD you want to add after setting the master/slave jumpers in the proper order. When adding one - Primary slave (mount on When adding two - Secondary Slave (mount the top of the bracket that. • SHR-2160/2162/2080/2082 USER’S MANUAL 7. Make sure that the bracket-HDD is mounted stably inside of the product, then connect the power supply cable, signal transmission cable (IDE cable), and fan cable to the HDD. 2-15 English. • Primary HDD Secondary HDD 8. Check if there is any problem with connector or wiring inside of the product for connecting and mounting then close the cover.

Tighten cover mounting screws. (The left and right side each has 5 spots and back side ha s1 spot) Caution Caution. • Chapter 3 Connecting with other devices. • SHR-2160/2162/2080/2082 USER’S MANUAL Connecting the Video, Audio, and Monitor [SHR-2160/2162] English. • [SHR-2080/2082] English. • SHR-2160/2162/2080/2082 USER’S MANUAL Connecting the Network ● Connecting to Internet through Ethernet(10/100BaseT) [SHR-2160/2162] ● Connecting to Internet through ADSL [SHR-2160/2162] English. • ● Connecting to Internet through Ethernet(10/100BaseT) [SHR-2080/2082] ● Connecting to Internet through ADSL [SHR-2080/2082] English.

• Caution Caution - USB port on the front and back of SHR-2160/2162/2080/2082 cannot be connected to same kinds of USB device. (For example, the case is that 2 CD-RW devices or 2 USB Memories are used by connection with the front and back of system.) - If you use the USB Memory on SHR-2160/2162/2080/2082, it should be composed of the format being supported by SHR-2160/2162/2080/2082. • Connecting the Alarm Input/Output The Alarm IN/OUT port in the back of SHR-2160/2162 is composed of the following elements. ● ALARM IN/OUT Connection Name Function - ALARM IN1 - ALARM IN2 - ALARM IN3 - ALARM IN4 - ALARM IN5.

• SHR-2160/2162/2080/2082 USER’S MANUAL ● ALARM IN/OUT Connection [SHR-2160/2162] [SHR-2080/2082] English. • The Alarm IN/OUT port in the back of SHR-2080/2082 is composed of the following elements. ● ALARM IN/OUT Connection Name Function - ALARM IN1 - ALARM IN2 - ALARM IN3 - ALARM IN4 - ALARM IN5 ALARM Input Port - ALARM IN6 - ALARM IN7 - ALARM IN8 On receiving an ALARM RESET signal, the. • SHR-2160/2162/2080/2082 USER’S MANUAL Connecting the RS-485 Device ● Connect the RS-485 Device through the back port of SHR-2160/2162. ● You can install and control the PTZ camera supporting the RS-485 communication. ● You can adopt either Half Duplex or Full Duplex method for the connection. • ● Connect the RS-485 Device through the back port of SHR-2080/2082.

● You can install and control the PTZ camera supporting the RS-485 communication. ● You can adopt either Half Duplex or Full Duplex method for the connection. PTZ device SHR-2080/2082 Rear Half Duplex Type.

• Chapter 4 Live. • SHR-2160/2162/2080/2082 USER’S MANUAL System Operation ● Turn the power on and the following LOGO pops up on the screen. ● After the LOGO appears, all of LED in the front flickers 6 times to initialize the system for operation. • Live screen Mode Definition of Live Screen Icon The Live screen icons display the current setup and function status of each screen.

V.Loss CAM_01 CAM_01: Recording Icon Each icon represents Normal / Event (Alarm + Motion) / Schedule Recording.: Recording Video Size Icon Each icon represents the recording size of Normal / CIF. • If you set Video On/Off to Off, [V.Off] will appear. Definition of Live Screen Mode SHR-2160 receives 16 live images and displays them in the following 9 modes as seen in the picture.

(Models SHR-2080/2082 do not support 16 split mode) • Selecting Live Screen Mode Each mode may be selected by [MODE Button] and [CH1 ~ CH16 Button] The following figure shows Live Mode of SHR-2160 after converted. ● The SHR-2160' initial screen is split screen mode. The SHR-2080/2082' initial screen is 9 split screen mode. • SHR-2160/2162/2080/2082 USER’S MANUAL Live Channel Selection and Audio On/Off Setup In other split modes than Full Screen Mode and Auto Sequence Mode, you can choose a channel to be displayed in each split area on your own.

In addition, the channel being set to Audio On can be turned to Audio On/Off in all Live Modes. • Freeze and Zoom Freeze Function Freeze function pauses the video image in the Live Screen, it is only available in the Live Mode. You can set freeze to on or off with the [FREEZE] button. Zoom Function Zoom function enlarges the selected area to double size, and it is only available in the single mode. • SHR-2160/2162/2080/2082 USER’S MANUAL Event Monitoring Event monitoring displays the channel synchronized with a event on the screen when a special event (Sensor/Motion/Video Loss) occurs.

Event monitoring On/Off and event duration setup is available in [Menu]➝[Monitoring] mode. If you set the event monitoring interval to 5 seconds and an event occurs at CH2 in the beginning as following figure, the system will display CH2 in the full screen for 5 second. • Spot-out monitoring Spot-out Monitoring has nothing to do with Live Screen Output, it monitors the full screen of a certain channel. If you select the Monitoring in the MENU, the one channel among CH1 ~ CH16 is output with a Spot-out or channels are output one by one at an interval as Auto Sequence Mode in the Live Mode. • Chapter 5 Menu Setup. • SHR-2160/2162/2080/2082 USER’S MANUAL Before Use ● User validation for entering the MENU window Press the “MENU” key to enter the Menu Setup window.

Select Menu out of Menu, Backup, and Shutdown in the Setup field. (You can also perform the Backup and Shutdown functions after this user validation checkup.) The ID is fixed to Admin because only the user with. • System Date/Time/Language Setup Date ● ¦, ‹ Press the “Enter” key and the key to move to Y/M/D. œ, ƒ Use the key to change the date.

Press the “Enter” key to come out of the mode. Time ● ¦, ‹ Press the “Enter”. • SHR-2160/2162/2080/2082 USER’S MANUAL Time Zone ● Set the local time zone based on the Greenwich Mean Time (GMT). Time Synchronization ● The time of your DVR can be synchronized by a specified server. For this purpose, enter the IP address of the time server and determine the initiator of this activity.

• New Password ● This is used to change the system password inside SHR-2160/2162/2080/2082. You are allowed to create a password up to 8 digits. Press the “Enter” key and a channel button from 1~9,10(operates as 0) at the left. Press the “Enter” key after change to move to “New Password Confirm”.

• SHR-2160/2162/2080/2082 USER’S MANUAL Password Lock ● If it is set to On, a pop-up window for user validation (You have to fill in the Setup, ID, and Password fields.) appears every time you select a menu. If it is set to Off, you can enter menus without entering the password. • System Log ● System Log is used to check the important record by an administrator.

● It displays such contents of a system related log and its execution date/time as System Start, System Termination, and Menu Setup Change. ● First: Moves to the first Log page. • Caution Caution [USB S/W Upgrade] Download the software to upgrade at CCTV Part.

If the USB memory to upgrade has a format not being supported by DVR set, the upgrade is impossible. In this case, use the “device erase” of menu 5-7 system information and setup. • Storage Setup You can configure the storage device related settings. Device Information ● Displays the number, capacity, and usage of ATA and USB devices. The displayed values are not changed.

You can remove the data in HDD or USB memory after checking in the Erase box. • Note 1 Note 1 [Internal HDD] This is a physical hard disk connected with the IDE cable inside the SHR-2160/2162/2080/2082 main body, and stores data.

[External HDD] This is a physical hard disk connected with the port and terminal in the back of the SHR-2160/2162/2080/2082 main body, and stores data. • Note 2 Note 2 [ATA] Usage: Internal HDD This is a physical hard disk connected with the IDE cable inside the SHR-2160/2162/2080/2082 main body. [USB] Usage: External HDD(Extended HDD or Backup HDD) It is physical hardware that is connected to the front/back part of the SHR-2160/2162/2080/2082 with the USB port. • SHR-2160/2162/2080/2082 USER’S MANUAL Export/Import the Configuration This menu is used to export or import the DVR-related settings to/from the USB memory. The related settings are as the following: Mode: You can select any of Import and Export. ● File Name or File Open: The file naming is YYMMDD00 by default.

“00” is the ●. • Remote control Device ● MENU for the use of Samsung system keyboard ● Device A Remote Control Device, being connected to the RS485 port. ● This is a private ID of SHR-2160/2162/2080/2082.

This private ID is essential for SSC-2000 because SSC-2000 can control many SHR-2160/2162/2080/2082 DVRs. • SHR-2160/2162/2080/2082 USER’S MANUAL System Shutdown MENU ● Terminates the work in action safely and turns the power off. Press “OK” in the confirmation window and plug out when you see “Safe to Power Off”. Caution Caution [System Shutdown] Power-off without terminating the system in the System Shutdown menu may incur improper motion like data loss and disk failure.

• Camera ● The detailed Camera Menu items are as follows. MENU Camera Config. ● Image On: Camera images from a selected channel appear. Off: Camera images from a selected channel disappear. Covert1: Displays the information except for the Video information of selected channel. Covert2: Does not display the any information.

• SHR-2160/2162/2080/2082 USER’S MANUAL ● Title You can name the camera of selected channel. If you press the [Enter] key, the Virtual keyboard will come out. ‹¤Virtual Keyboard If you move the cursor, you can type text by text. Up to 15 texts can be typed.

• ● It is supported by the PTZ device. The following protocols are now being supported. Samsung / Vic.

/ Pel-D / Pel-P / Vcl. • SHR-2160/2162/2080/2082 USER’S MANUAL Screen Setup ● It is a window to set Brightness/Contrast/Color for the camera image of each channel.

Put the cursor on the channel that you want to adjust and set Brightness/Contrast/Color. Once selected, the channel appears in the right PIP area.

Use the œ or ƒ button to adjust the value from 0 to 100. • Monitoring Event Monitoring ● It is possible to set to Off / 3sec / 5sec / 10sec / 20sec / 30sec / Continuous. ① Off: Event Monitoring does not operate to turn to the screen where an event occurs. • SHR-2160/2162/2080/2082 USER’S MANUAL Image output ● Pressing both the mode button and zoom button on the front left side the same time for five seconds switches the VGA status to Composite status and Composite status to VGA status then reboots.

• Recording Mode Record mode ● Record mode menu’s detailed list is as follows. MENU Record Quality & Auto Deletion Recording picture quality ● Sets the recording picture quality. You can set up from Very High / High / Standard / Low Auto Deletion ●. • SHR-2160/2162/2080/2082 USER’S MANUAL Record Rate & Video Size NTSC When you press the REC button in the front, it selects the record mode settings. Record/seconds ● Sets the recording frame rate. The frame rate is number of the recorded scenes per second. • Event Record Duration Pre-Event(PreEve.) ● Pre-Event Section Event time Records the situation until Alarm is issued.

Off: No recording 5sec / 10sec / 20sec / 30sec: The recording time options before Alarm issue Post-Event(PostEve.) ● Post-Event Section Event time Records the situation since Alarm is issued. • SHR-2160/2162/2080/2082 USER’S MANUAL Event Record Mode ● Event record menu’s detailed list is as follows. MENU 5-23 English.

• Alarm Detection Setup Off: Sensor does not operate. ● ① N.O(Normal Open) Sensor: Sensor remains open all the time and if closed, an alarm will be issued. (A Contact) ➁ N.C(Normal Close) Sensor: Sensor remains closed all the time and if open, an alarm will be issued. • SHR-2160/2162/2080/2082 USER’S MANUAL Motion Detection Setup Motion Detection Mode ● Off: Motion Detection does not operate On: Motion Detection operates. Area ● Selects the Motion Detection area. It is impossible to set 4 block rows(Up / Down / Left / Right) to allow them to be displayed in all monitors. • Sensitivity ● Sets the sensitivity of motion detection.

Sensitivity grade consists of Low ➝ Medium ➝ Very High in the ascending order. Alarm-Out ● Sets the Alarm-Out when Motion occurs. 5 Alarm Outs are supported. Select an alarm-out that you want to synchronize with the current motion channel. Multi-selection is possible. • SHR-2160/2162/2080/2082 USER’S MANUAL Schedule This setup selects a time to record automatically.

Selection by the day or by the time is available. The default value is set to “Event Record”.

Press “CH >” copies the value of Channel 1 to all the channels. • Alarm Out Schedule You can schedule the automatic output for alarms. The scheduling is enabled by selecting alarms, days and time blocks. The default setting is Event Driven.

For each alarm or beep, you can activate or deactivate alarming. In case of Event Driven, the alarm can be sent only when an event is issued. • - In case of back-up devices, please check the compatibility list of the storage devices. The list of the compatible devices with Samsung DVR can be obtained from your vendor. - The backup of the AVI format may take longer depend on a number of the channel and the DVR operation environment (e.g. • Caution Caution 1.

If the main body of SHR-2160/2162/2080/2082 is connected to a high-speed network like LAN, you are recommended to set the bandwidth to higher than 1 Mbps. If the device is connected to a network with ADSL or low bandwidth, set the bandwidth not to exceed 600kbps, and set the recording mode not to exceed CIF (standard). • SHR-2160/2162/2080/2082 USER’S MANUAL ● Sets the IP address for the main body of SHR-2160/2162/2080/2082 to connect with the network. If the Connection Mode is set to Static IP, you shall type in IP yourself. If the connection mode is Dynamic IP or ADSL(PPPoE), the IP allocated by the DHCP server or ADSL company will be automatically displayed.

• - If you select Off, the IP will not be registered in DDNS. - If you select Samsung DDNS, the IP will be registered in the DDNS operated by Samsung.

Select MAC Address as the Address Type in the Setup ➝ Site Setup ➝ DVR regis tration window of the SmartViewer, and enter the MAC Address of, then you can connect remotely using the Samsung DDNS. • SHR-2160/2162/2080/2082 USER’S MANUAL Callback Settings The Callback function is used to forward a callback message to the IP where SmartViewer ● is in action in case Alarm, Motion Detection, or Video Loss event occurs. On/Off: Off is default but you may choose On. • Network Setup Port Setup for SmartViewer Connection The Port value for DVR registration of SmartViewer (Setup ➝ Site Setup) shall be as ● same as that of the set (TCP). If you want to use the IP Router, you shall forward the activated Port depending on the ●. • Chapter 6 PTZ Camera Control.

• If you succeed in entering PTZ Camera Control Mode, the PTZ symbol on the monitor screen will turn yellow from white while the PTZ button in front of SHR-2160/2162/2080/2082 will turn blue. PTZ Camera Control Mode supports Pan, Tilt, and Zoom operation. • When using the remote controller (SCC2000), direct camera control is available only for Samsung Protocol in the remote controller (refer to the SCC2000 user manual). If there is no PTZ control within the maximum 5 minutes in DVR, the PTZ mode is cancelled automatically. • When using a remote control device (SCC2000), it is possible to control the camera with the remote control limited to the Samsung protocol. (refer to SCC2000 user manual) If there is no PTZ control for 5 minutes from the DVR, PTZ mode is automatically cancelled. • Memorizes up to 20 PTZ Camera positions at the moment.

Note Note For AD Protocol PTZ Camera, this memorizes only 7 Presets. ● Press the Preset button in front of SHR-2160/2162/2080/2082 in Single Screen PTZ Camera Control Mode to set up Preset. TELE WIDE VIEW PRESET ●. • SHR-2160/2162/2080/2082 USER’S MANUAL ● Move the cursor to right and press ENTER in PTZ Control Mode first. Then, press the “Enter” to run P/T/Z/ operation mode in the PIP screen and press the “Enter” again to cancel P/T/Z/ Motion Mode.

• Press the Preset button in front of SHR-2160/2162/2080/2082 in Single Screen PTZ Camera Control Mode to select Camera Menu. TELE WIDE VIEW PRESET ● Press the “Preset” button in front of SHR-2160/2162/2080/2082 to return to the upper menu from camera menu. • Preset View ● Preset setup allows your movement to a certain saved position of PTZ Camera. ● Press the VIEW button in front of SHR-2160/2162/2080/2082 in Single Screen PTZ Camera Control Mode to select Preset.(For example, Samsung Protocol) TELE WIDE. • Other View ● Press the “VIEW” button in front of SHR-2160/2162/2080/2082 in Single Screen PTZ Camera Control Mode to supply PTZ Camera. This is a very special function. Note Note Samsung, Pan., Pel.-P, or Pel.-D Protocol PTZ Camera supports this function.

• Chapter 7 Recording. • SHR-2160/2162/2080/2082 USER’S MANUAL REC (Normal Recording) ● Pressing REC the button starts recording as set in the record mode. Then, REC LED lights on and a recording icon appears on the screen. During the recording in HDD, the front HDD LED blinks. • Schedule Recording ● While “Record Schedule” or “Schedule/Event recording” is selected in the Record Schedule menu, Schedule Recording automatically starts. Otherwise, Schedule Recording remains inactivated.

During the Schedule Recording, Recording Icon appears on the screen. During the recording in HDD, the front HDD LED blinks. • SHR-2160/2162/2080/2082 USER’S MANUAL Event Recording Alarm Detection ● Sensor operation mode in Alarm of Event Record menu shall be set to N.O (Normal Open) or N.C (Normal Close). Motion Detection ● Motion detection in the Event Recording menu shall be set to On. • Chapter 8 Search and Play.

• SHR-2160/2162/2080/2082 USER’S MANUAL Before Use ● Pressing the “SEARCH” button shows Search Menu on the screen as seen above. ● Calendar Search searches a video file by the use of a calendar at the desired time. ● Event Search searches a video file recorded by the occurrence of event. • Calendar Search ● Be sure to select both the channel and the date to search.

And press the [OK] button to search for the desired time. ● Use a calendar to search the video file of desired time. When you select the desired channel with the enter button and the ¦, ‹ button, the ●. • SHR-2160/2162/2080/2082 USER’S MANUAL Event Search ● Searches Normal Recording, Schedule Recording, Alarm Recording, Motion Recording, and V.Loss(Video Loss) Recording by the time.

● You shall select a channel to search to see the event information of the channel. ● On the basis of event information for each channel, the system searches a video file for the event. • Date/Time Search ● Use the Date/Time information to search a video file at the time as you desire. Up to 16channels can be searched at once. After you select a channel with the œ, ƒ, [Enter] button, the checkbox on the right of ●. • SHR-2160/2162/2080/2082 USER’S MANUAL Go to First Search ● Searches the oldest one among recorded video files.

Up to 16 channels can be searched at once. After you select a channel with the œ, ƒ, [Enter] button, the checkbox on the right of the ●. • Go to Last Search ● Searches the latest one among recorded video files. Up to 16 channels can be searched at once. After you select a channel with the œ, ƒ,[Enter] button, the checkbox on the right of the ● selected channel number will be checked.

• SHR-2160/2162/2080/2082 USER’S MANUAL Backup ● First, select the backup device. ● Mark the data of device. ● Select the file name to backup, and the detail information of a file is displayed in the below. ● The [Previous] button shows the previous page. • Playback ‹ ¤ II ● In order to play data recorded on the HDD, press the play/pause button ( ● If you used the SEARCH button for playback just before, the system would remember the information of the played channel until you click the PLAY/PAUSE button( ‹. • SHR-2160/2162/2080/2082 USER’S MANUAL ● Play screen mode: You can change play screen mode with the mode button and number buttons as the figure below. (16 split, 12+1 split, and 15+1 aplit apply to the SHR-216x) Single 8 +1 split 12 +1 split.

• Play at Faster Speed ● ¦ ¦ ‹ ‹ If you press the LEFT or RIGHT button( ) during the playback, you will be able to see the screen at the x2, x4, x8, x16, x32, and x64 speed either forwardly or reversely. • Chapter 9 Smart Viewer. • Introduction Smart Viewer is a program that a general PC user is able to install SHR-2160/2162/2080/2082 to his PC to monitor the video and audio data in the real time through network without going to the site where SHR-2160/2162/2080/2082 is installed. • (If the multicast is used, up to 6 users can connect.) ● With a Smart Viewer, you are allowed to connect to as many as 16 SHR-2160/2162/2080/2082s to monitor them simultaneously. ● Smart Viewer is optimized in the resolution of 1024X768. • VGA RAM 32Mb or higher DirectX 8.1 or higher Note Note Depending on Recording Rate, Video Size, and user’s PC specification set to SHR-2160/2162/2080/2082, the number of Smart Viewer playback frame varies.

For the detailed specification, refer to Appendix 4. • Smart Viewer Installation Smart Viewer Installation ● Put a Smart Viewer Program CD in CD-ROM and open the “Smart Viewer” folder in the CD. ● Run the “Setup.exe” file. • SHR-2160/2162/2080/2082 USER’S MANUAL ● Click the “Next” button. ● If you agree with Smart Viewer License, click “Yes”.

● Designate a folder to install Smart Viewer in it and click “Next”. • ● The system proceeds with setup file installation and system setup. ● Installation is complete. Click the “Finish” to terminate the installation. • SHR-2160/2162/2080/2082 USER’S MANUAL Smart Viewer Program Execution ● Double-click the Smart Viewer icon in the background screen to run the program. • ^ These buttons select the window displays the event message and the window displays the connection condition of camera.

& This window displays the event message from SHR-2160/2162/2080/2082 in the real-time. * These buttons display the status of current channel. • SHR-2160/2162/2080/2082 USER’S MANUAL Setup Mode ● Initial Screen! Button to select items for DVR Setup, Viewer Setup, Site Setup, and S/W Version setup.

@ It shows what the selected Setup item can set up in detail. # Button to terminate the setup window. • - Viewer Setup: Allows you to set the various kinds of item concerning the operation of Smart Viewer. - Site Setup: Allows you to set SHR-2160/2162/2080/2082 information, that is SHR-2160/2162/2080/2082 name, IP Address, ID, and Password that you are going to contact through Smart Viewer or registers all the registered SHR-2160/2162/2080/2082s at a site for control. • SHR-2160/2162/2080/2082 USER’S MANUAL DVR Setup - Click the [DVR Setup] button for DVR Setup. - You can change remotely the setup items of SHR-2160/2162/2080/2082 Menu, being connected with Smart Viewer.

- DVR Setup is composed of 5 items; System, Camera/Audio, Monitoring, Recording, and Network. • ● Detailed DVR Setup Items! System - Information Information shows the information on on-line SHR-2160/2162/2080/2082.

Note Note For the detailed items of DVR Setup, refer to Chapter 5. - Admin Password You can change the Admin password related settings for control of DVR.

• - If you change the Date/Time value, SHR-2160/2162/2080/2082 automatically cuts the connection with Smart Viewer to apply the new time setup. - Upon completing the new time setup for SHR-2160/2162/2080/2082, you are permitted to resume the connection with the Smart Viewer. • - Language Language sets the language in which on-line SHR-2160/2162/2080/2082 will be expressed Note Note The change of language by the system language results in the change of language expression setup of SHR-2160/2162/2080/2082. In short, the language setup of Smart Viewer does not change. • Sets the remote control to on/off.

You can set the remote control’s ID to 0-99. Note Note If you install the remote control device to the main body of SHR-2160/2162/2080/2082 and activate the setup, PTZ control is not available in the Viewer. 9-15 English. • @ Camera - Config. Sets Video, Audio On/Off, Camera Title, and Auto Sequence Time for each channel of on-line SHR-2160/2162/2080/2082. In the case of the 2080/2082, 8-channel information comes up. Caution Caution - Only English is supported for the title.

If you type in and apply the title in your native language, warning message pop sup to ask your retyping. • SHR-2160/2162/2080/2082 USER’S MANUAL - PTZ device It sets Camera ID, Protocol, Baud Rate, Parity, Data Bit, Stop Bit, and Serial Mode when connecting the dome camera to all the channels. In the case of the 2080/2082, 8-channel information comes up.0. • $ Recording - Rec.

In this mode, you can set to normal (general recording) quality, event recording quality, and auto-delete. In the case of the 2080/2082, 8-channel information comes up. 9-18 English. • SHR-2160/2162/2080/2082 USER’S MANUAL - Rec. Rate & Video Size When recording in normal or event, you can set the rate (recording speed) and video size (resolution). The set video size here influences the setting of the normal and event recording rate.

• - Alarm Rec. It sets the information necessary for the alarm recording. In the case of the 2080/2082, 8-channel information comes up.

Note Note More than one camera should be selected to apply the alarm. - Motion Rec. It sets the information necessary for the recording by the motion Detection. In the case of the 2080/2082, 8-channel information comes up. • SHR-2160/2162/2080/2082 USER’S MANUAL - Video Loss Video Loss sets up the information on how to inform the user of Video Loss of SHR-2160/2162/2080/2082. In the case of the 2080/2082, 8-channel information comes up.% Schedule You can configure schedule-related settings.

• - Alarm Out Schedule You can change the alarming schedulerelated settings. 9-22 English. • ^ Network - Password It sets the password for Admin and User when connecting with SHR-2160/2162/2080/2082 through the network in Smart Viewer. Caution Caution - Network password should be composed of numeric and it can be input up to 8 digits. • - IP Settings It sets the network connection method of SHR-2160/2162/2080/2082. SHR-2160/2162/2080/2082 supports the connection with Static IP, Dynamic IP, and ADSL(PPPoE).

It can set the network bandwidth. Adjust the bandwidth to the network condition in which SHR-2160/2162/2080/2082 is connected. • Both Multicast IP and TTL are used for UDP(Multicast). ● Callback - You can set the Callback function of SHR-2160/2162/2080/2082. - In the event of Alarm, Motion Detection, or Video Loss, set the IP address and port of PC where SmartViewer is installed to forward Callback messages.

In failure of message forwarding, set the value for retrial. • Note Note - SHR-2160/2162/2080/2082 uses 4 ports for TCP connection.

- The PORT number is flexible and 4 consecutive numbers are grouped for the change ( 554,555,556,557 ➝ 558,559,560,561 ) - If you use the IP Router for network composition, you should allocate a protocol for SHR-2160/2162/2080/2082. • Video Recording! Naming - Being connected to SHR-2160/2162/2080/2082 in the monitoring or search mode, you can save the video displayed with *.dvr file and name it. - If you set to “Camera No. + Serial No.”, the file name depends on the camera number and serial number.

• - Sets if the smart viewer is automatically connected to SHR-2160/2162/2080/2082 or site at the initial operation. - If you check “Auto Connection Enable”, the names of SHR-2160/2162/2080/2082 and Site currently registered at the DVR/Site list will be displayed in the following list. • Site Setup - Click the [Site Setup] button for Site Setup. - The information of DVR(SHR-2160/2162/2080/2082) or Site that you want to connect by Smart Viewer is set in the Site Setup. - Smart Viewer allows you to connect with DVR(SHR-2160/2162/2080/2082) or Site registered only here. • - The information of DVR(SHR-2160/2162/2080/2082) that you want to connect by Smart Viewer is set in the DVR List. - You can register a new DVR(SHR-2160/2162/2080/2082) or delete and edit the DVR(SHR-2160/2162/2080/2082) selected from the registered list, and the name and IP / MAC Address of the registered DVR(SHR-2160/2162/2080/2082) is displayed in DVR List.

• SHR-2160/2162/2080/2082 USER’S MANUAL - If your DVR (SHR-2160/2162/2080/2082) uses a static IP, select “Static IP” for Address Type and type in the name of the DVR (SHR-2160/2162/2080/2082) and the IP address. - Select “Port” so that it matches the port number that you’ve set in the network menu of DVR (SHR-2160/2162/2080/2082). • - If you select “Use DDNS” in the network settings menu of DVR (SHR-2160/2162/2080/2082) or use an IP splitter to register an URL using DDNS, you can make connection via the URL. - If you want to make connection via the an URL, select “URL” for Address Type and type in the URL set for the DVR or IP splitter in the URL menu item. • - Deletion of an old DVR(SHR-2160/2162/2080/2082) - If you select a DVR(SHR-2160/2162/2080/2082) in the DVR list for deletion and press the [Delete] button, the following message box pops up. Press the [OK] button to delete the DVR(SHR-2160/2162/2080/2082).

• - To Edit the old DVR(SHR-2160/2162/2080/2082) - If you select a DVR(SHR-2160/2162/2080/2082) in the DVR list to edit and press the [Edit] button, the following message box pops up. Press [OK] button to edit the DVR(SHR-2160/2162/2080/2082).

- When the DVR(SHR-2160/2162/2080/2082) to edit is connected with the Smart Viewer, the following message box pops up and the DVR (SHR-2160/2162/2080/2082) cannot be edited. • ● Site List - You can register and control the many DVRS(SHR-2160/2162/2080/2082) to be connected with the smart viewer at once with a site in the site list. You are allowed to register a new site,and delete or edit the selected site in the registered list. • @ To delete an old site or DVR(SHR-2160/2162/2080/2082) - If you select a site or DVR(SHR-2160/2162/2080/2082) in the site list for deletion and press the [Delete] button, the following message box pops up. Press the [OK] button to delete either site or DVR (SHR-2160/2162/2080/2082). • DVR list is added to the site selected in the site list. The DVR(SHR-2160/2162/2080/2082) set to ADSL cannot be added to the site.

- You can add up to 4 DVRs(SHR-2160/2162/2080/2082) to a site and the DVR(SHR-2160/2162/2080/2082) composing the site can be deleted in the site list. • DVR(SHR-2160/2162/2080/2082), your access will be denied.! Displays the smart viewer version and system requirements. @ Displays the version and name of DVR if any DRV(SHR-2160/2162/2080/2082) is being connected with the Smart Viewer. This area can also provide functions for remotely upgrading the DVR software, extracting, and recovering the DVR settings. • - DVR Version not only displays the connected DVR(SHR-2160/2162/2080/2082) name if any DVR(SHR-2160/2162/2080/2082) is being connected with Smart Viewer or the name of DVR(SHR-2160/2162/2080/2082) composing a site if any DVR(SHR-2160/2162/2080/2082) is being connected with the site but also displays DVR(SHR-2160/2162/2080/2082) S/W version.

• Be sure to suspend all the DVR system functions in action such as recording, MENU, backup, and playback before you upgrade the DVR(SHR-2160/2162/2080/2082) S/W. Never try to turn the DVR(SHR-2160/2162/2080/2082) power off during the S/W upgrade.

The S/W upgrade requires about 5 minutes. • @ Press the [Export] button to specify the file name (*.dat), then the setting val- ues can be saved on your PC. ● Recovering the menu setting values for DVR(SHR-2160/2162/2080/2082) - SmartViewer enables you to restore the menu settings for the connected DVR(SHR-2160/2162/2080/2082). • Monitoring Mode ● DVR(SHR-2160/2162/2080/2082) / SITE Connection - Select the name of DVR(SHR-2160/2162/2080/2082) or site for connection and click the connection button.

Note Note You can set the name, IP, and password of DVR(SHR-2160/2162/2080/2082) for connection in the Setup mode. Also, the site setup which permits simultaneous connection to multi-DVRs(SHR-2160/2162/2080/2082) is available in the Setup mode. • SHR-2160/2162/2080/2082 USER’S MANUAL Note Note No more than 3 users, one Admin. Authorized user and 2 User authorized users are allowed to access SHR-2160/2162/2080/2082 simultaneously.(In the case of multicast, 5 User authorized users are allowable.) Caution Caution Once occupied by 3 users( In the case of multicast, 6 users), SHR-2160/2162/2080/2082 does not permit more connection. • ● Time Information - As soon as you are connected to SHR-2160/2162/2080/2082, the current date, day, and time of SHR-2160/2162/2080/2082 will be displayed.

- Otherwise, the current date, day, and time of your PC will be displayed. ● Connection Information - As soon as you are connected to SHR-2160/2162/2080/2082, the connection button will display connection status. • # Clicking the speaker icon turns the audio of channel on or off.: Audio OFF: Audio ON If you turn the audio of a SHR-2160/2162/2080/2082 channel off, “Disable” will be displayed.: Audio Disabled ✴ For the Audio on channel now, use the following audio button to adjust the volume and set the mute. • ‹ Setup Start / End (Local): Start/Finish the Menu screen at SHR-2160/2162/2080/2082.

‹ Video Loss CH[N]: Video Loss at the N channel of SHR-2160/2162/2080/2082 encountered. ‹ Time Change: Date/Time of SHR-2160/2162/2080/2082 changed. ‹ Load Factory Default: SHR-2160/2162/2080/2082 System initialized. • - Displays the connection condition of DVR and CAMERA in the list. Note Note [DVR Icon Color] ‹ Successfully connected to SHR-2160/2162/2080/2082, the icon turns yellow, otherwise, turns black. [DVR Icon Color] ‹ Connected to CAMERA for monitoring, the icon turns yellow. • - In Sixteen-Split Mode: 1,2,3,4,5.,13,14,15,16 ➝ 1,2,3,4,5.,13,14,15,16 (CH) Note Note When connecting many DVRs (SHR-2160) with site, the sequence operates as follows.

- In Single Mode: DVR1:1CH ➝.➝ DVR1:16CH ➝ DVR2:1CH ➝.➝ DVR2:16CH - In Quad Mode: DVR1:1,2,3,4CH ➝.➝ DVR1:13,14,15,16CH ➝ DVR2:1,2,3,4CH ➝.➝. • SHR-2160/2162/2080/2082 USER’S MANUAL: When monitoring with Quad Mode: When monitoring with Single Mode: Camera Off Note Note The number in the screen icon indicates the screen position in SmartViewer.: The orange icon indicates the current channel is connected to a camera. • - In Sixteen-Split Mode: 1,2,3,4,5.,13,14,15,16 ➝ 1,2,3,4,5.,13,14,15,16 (CH) Note Note When connecting many DVRs (SHR-2160) with site, it operates the next action as follows. - In Single Mode: DVR1:1CH ➝.➝ DVR1:16CH ➝ DVR2:1CH ➝.➝ DVR2:16CH - In Quad Mode: DVR1:1,2,3,4CH ➝.➝ DVR1:13,14,15,16CH ➝.➝ DVR2:1,2,3,4,CH ➝.➝.

• SHR-2160/2162/2080/2082 USER’S MANUAL ● FAVORITE Button - If you press FAVORITE, the FAVORITE window will be activated. If you click the current FAVORITE, the cameras saved in the current setting value will be displayed in the screen. You may delete the selected FAVORITE or all FAVORITE setting values. • ● Video Recording Button - If you select a channel in the playback and click the “Save” button, the video will be saved in a file format with the extension of *.dvr in a designated folder of your - The name of the directory in which an image will be saved, the file name, and the image save length shall be set up at the Setup Mode ➝. • Note Note The PAN / TILT / ZOOM function is supported to all the cameras. But, POWER ZOOM is supported only by Samsung Smart Dome Camera, and assured to the operation of TILT below 45°.

9-53 English. • $ may vary depending on the camera vendor. And those functions may not be sup- ported by some product.

- Samsung cameras support those functions. - In case of Panasonic cameras, the names of AUTOPAN, SCAN, and PATTERN are as following: @ SEQUENCE # AUTOPAN $ SORT. • # This is a button for the role of Enter. Note Note The Camera Menu Setup function is supported by Samsung and Panasonic camera only. Caution Caution As far as SHR-2160/2162/2080/2082 uses the PTZ camera control functions, Smart Viewer can not control PTZ Camera. • The initial screen of search mode - The search mode is divided into the remote mode to search and play the SHR-2160/2162/2080/2082 video and the local mode to play *.dvr file saved in the directory designated by your PC. • - Without the ADMIN authority, search is not accessible.

● Remote Mode - This mode transfers the video data recorded in SHR-2160/2162/2080/2082 by network for the playback. - Up to 4 channels are allowed for simultaneous search and playback. - The video information at the time indicated by the timebar will be displayed in the playback screen. • ● Calendar Window - If the video data in on-line SHR-2160/2162/2080/2082 was recorded, the date turns red. - If you click the date in red, the saved video information is displayed.

- The currently selected date will be marked with a thick red box. • SHR-2160/2162/2080/2082 USER’S MANUAL Backup Button - If not playback(Stop), the video save button performs the backup function. - If the save button is pressed, the window for backup pops up. - Set a Start/End tome for backup and select a file format to save.

• # Print - This function outputs the screen zone of the playback video which is now being displayed. $ Setup Mode Button - This button pops up the setup mode window. ● Play Buttons!

Play: Play @ Reverse Play: Reverse Play # Stop: Stop $ Fast Forward: Faster Play% Fast Backward: Faster Reverse Play. The channels being displayed in the playback screen will be activated in the white background. @ Time Line: The time information of video recorded in SHR-2160/2162/2080/2082. # Time Bar: Displays the current time of video being displayed in the playback screen. • - Plays *.dvr file saved in the directory of your PC by the Record function.

- You can search and play only one channel. - You are allowed to access it regardless of connecting with SHR-2160/2162/2080/2082. - Other functions than the calendar display function are as same as those of the remote mode. • SHR-2160/2162/2080/2082 USER’S MANUAL Product Specification Specs Details Notes Operating System Embedded OS Broadcasting NTSC System AC 110~220(NTSC) Input Voltage AC 100~230(PAL) Power Usage 2160/2080: 56W, 2162/2082: 60W Composite 16(8) Channel - 1.0Vp-p - 75 Ω Hi Z Termination.

• PAL: 0.7 / 1.5 / 3.1 / 6.2 / 12.5 / 25ips (True Recording ips: 0.781/1.563/3.125/6.25/12.5/25ips) SHR-2162/2082: ATA HDD x 3(MAX) MAX HDD Size: 500GB x 3 = 1.5TB Internal SHR-2160/2080: ATA HDD x 4(MAX) Save MAX HDD Size: 500GB x 4 = 2TB USB HDD External. • SHR-2160/2162/2080/2082 USER’S MANUAL Specs Details Notes Calendar search Event search - Alarm, Motion, Video Loss Search Mode Date/time search Initial search Latest search Backup search Total Recording Specs Resolution 120/100i Resolution & 16Ch ps(CIF) Play Back Recording Specs 15ips(NTSC)/12.5ips(PAL) 7.5ips(NTSC)/6.2ips(PAL) • Outline Drawings [SHR-2160] [SHR-2162] 10-4 English. • SHR-2160/2162/2080/2082 USER’S MANUAL [SHR-2080] [SHR-2082] 10-5 English. • Factory Default This restores the Network information and preset values in SHR-2160/2162/2080/2082 to the original state at the time of factory shipment. Factory Default will be done as follows; - Use System / Load Factory Default in MENU or, - In Live mode, press and hold down MODE and then PTZ on the front panel for 6 seconds to reset the settings.

• SHR-2160/2162/2080/2082 USER’S MANUAL Classification Detailed Items Factory Setup Duration Event Monitoring Date OSD Display Time Title Status Monitoring Spot Out Channel Spot Out Event Monitor Monitor Out Composite Out Play channel location Lower right-hand corner Multi-channel change 5 seconds Normal Quality Standard Record Quality &. • Classification Detailed Items Factory Setup Connection Mode Static IP Bandwidth 2Mbps Admin Password 4321 User Password 4321 192.168.001.200 IP Settings Gateway 192.168.001.001 Subnet Mask 255.255.255.000 168.126. Comand Aps Software Update. 063.001 ADSL User ID Password Protocol type Port(TCP) 0554.0555.0556.0557 Network Port(UDP) 8000-8159 Unicast / Multicast Unicast Transfer Protocol Multicast IP. • SHR-2160/2162/2080/2082 USER’S MANUAL SHR-2160/2162/2080/2082 Smart Viewer Frame Specification for the Playback NTSC FRAME Viewer Screen VIDEO SIZE RATE Split Mode Half D1(N) CIF (C) 16-split 0.5 frame/sec 9-split 2.5 frame/sec 4-split 7.5 frame/sec Single 7.5 frame/sec Half D1(N) CIF (C) 16-split 0.25 frame/sec. • Note The play frame specification of Smart Viewer varies on the setup of SHR-2160/2162/2080/2082 Recording Rate and Video Size or the screen split mode of Smart Viewer. The above specification is applicable only when the main body of SHR-2160/2162/2080/2082 is connected with a fast network like LAN.

When the main body of SHR-2160/2162/2080/2082 is connected with a slow network like ADSL, the play speed will be 0.5 Frame/sec. • SHR-2160/2162/2080/2082 DVR. You cannot enter MENU by forgotten password. - If you forget the password, you shall reset SHR-2160/2162/2080/2082 DVR to the values set at the factory. Keep pressing both the 'MODE' button and the 'PTZ' button on the left for 5 seconds, Keep pressing both the 'MODE' button and the 'PTZ'. • Please consult with an expert who works for the shop where you bought the product. You cannot connect to SHR-2160/2162/2080/2082 DVR through Smart View.

- Check if 3 Smart Viewer users are in connection with SHR-2160/2162/2080/2082 DVR. SHR-2160/2162/2080/2082 DVR allows no more than 3 users’ connection with Smart Viewer at a time. If it remains unconnected after 5 time trial, it will automatically give up connection. - As far as SHR-2160/2162/2080/2082 DVR is connected to the ADSL network, you may be disconnected from Smart Viewer when the network conditions goes bad. • Open source license report on the product This product uses software provided under the name of GPL and LGPL. You can receive the following GPL and LGPL source codes by email request to www.sec.co.kr. - GPL Software Kernel, Busybox, Sysvinit, dvd+rw-tools, cdrtools, dosfstools - LGPL Software gLibc, Inetutils GNU GENERAL PUBLIC LICENSE.

• SHR-2160/2162/2080/2082 USER’S MANUAL Program' means either the Program or such interactive use in the most ordinary any derivative work under copyright law: way, to print or display an announcement that is to say, a work containing the including an appropriate copyright notice. • b) Accompany it with a written offer, valid ance. For at least three years, to give any third 5.

You are not required to accept this party, for a charge no more than your License, since you have not signed it. Cost of physically performing source dis- However, nothing else grants you permis- tribution, a complete machine-readable.

• SHR-2160/2162/2080/2082 USER’S MANUAL validity of any such claims; this section make exceptions for this. Our decision has the sole purpose of protecting the will be guided by the two goals of pre- integrity of the free software distribution serving the free status of all derivatives. • is to make it free software which every- clicks or menu items--whatever suits your one can redistribute and change under program. You should also get your employer (if you To do so, attach the following notices to work as a programmer) or your school, if the program. • SHR-2160/2162/2080/2082 USER’S MANUAL we suggest you first think carefully about tive license from a patent holder. Whether this license or the ordinary Therefore, we insist that any patent General Public License is the better strat- license obtained for a version of the.

• example, permission to use the GNU C scripts used to control compilation and Library in non-free programs enables installation of the library. Many more people to use the whole GNU Activities other than copying, distribution operating system, as well as its variant, and modification are not covered by this the GNU/Linux operating system. • SHR-2160/2162/2080/2082 USER’S MANUAL not supply such function or table, the Once this change is made in a given facility still operates, and performs copy, it is irreversible for that copy, so the whatever part of its purpose remains ordinary GNU General Public License meaningful. • If such an object file uses only numerical sarily be able to recompile the applica- parameters, data structure layouts and tion to use the modified definitions.) accessors, and small macros and small ■ Use a suitable shared library mecha- inline functions (ten lines or less in nism for linking with the Library. • SHR-2160/2162/2080/2082 USER’S MANUAL library, provided that the separate distrib- ment or allegation of patent infringement ution of the work based on the Library or for any other reason (not limited to and of the other library facilities is other- patent issues), conditions are imposed. • limitation as if written in the body of this REPAIR OR CORRECTION.

IN NO EVENT UNLESS REQUIRED 13. The Free Software Foundation may BY APPLICABLE LAW OR AGREED TO publish revised and/or new versions of IN WRITING WILL ANY COPYRIGHT the Lesser General Public License from HOLDER, OR ANY OTHER PARTY time to time.

• SHR-2160/2162/2080/2082 USER’S MANUAL but WITHOUT ANY WARRANTY; without even the implied warranty of * 3. All advertising materials mentioning MERCHANTABILITY or FITNESS FOR A features or use of this PARTICULAR PURPOSE. See the GNU software must display the following Lesser General Public License for more acknowledgment: details. • OR BUSINESS INTERRUPTION) * as the author of the parts of the library * HOWEVER CAUSED AND ON ANY used. THEORY OF LIABILITY, WHETHER IN * This can be in the form of a textual CONTRACT, message at program startup or * STRICT LIABILITY, OR TORT * in documentation (online or textual) (INCLUDING NEGLIGENCE OR OTH.

• SHR-2160/2162/2080/2082 USER’S MANUAL * DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUB- STITUTE GOODS * OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTER- RUPTION) * HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT. • Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
